  타격앙카

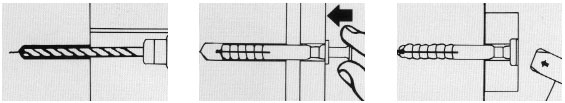

▣ 체결방법 (A METHOD TO SETTING) DPS타격용 앙카

▣ 타격 앙카 Unit : mm
품명/ 설치치수 A B C D
DPS 6/12 6 30 45 12
DPS 6/25 6 30 45 25
DPS 8/30 8 42 55 30

  T.S 볼트

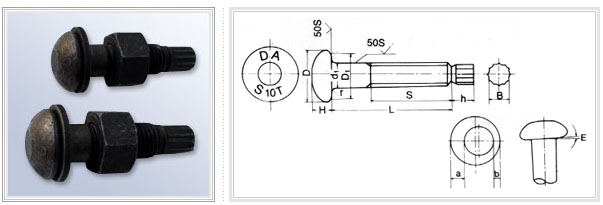

▣ ROUND HEAD T.S. BOLT Unit : mm
Normal
Diameter
d1 D1 D H h B r a-b E S
Basic Tolerance Min. Max. Basic Tolerance App. Basic Tolerance App. Max. Max. Basic Tolerance
M16 16 +0.7
-0.2
26 27 10 ±0.8 15 11.3 ±0.3 1.2-
2.0
0.8 1˚ 30 +5
0
M20 20 +0.8
-0.4
33 34 13 ±0.9 18 14.1 0.9 35 +6
0
M22 22 37 38.5 14 19 15.4 1.1 40
M24 24 41 43 15 20 16.8 1.6-
2.4
1.2 45

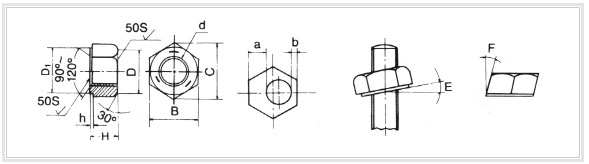

▣ NUTS Unit : mm
Normal
Diameter
H B C D D1 a-b E F h
Basic Tolerance Basic Tolerance App. App. min. Max. Max. Max.
M16 16 ±0.35 27 0
-0.8
31.2 25 25 0.8 1˚ 2˚ 0.4 ~ 0.8
M20 20 ±0.4 32 0
-1
37 30 29 0.9
M22 22 36 41.6 34 33 1.1
M24 24 41 47.3 39 38 1.2
